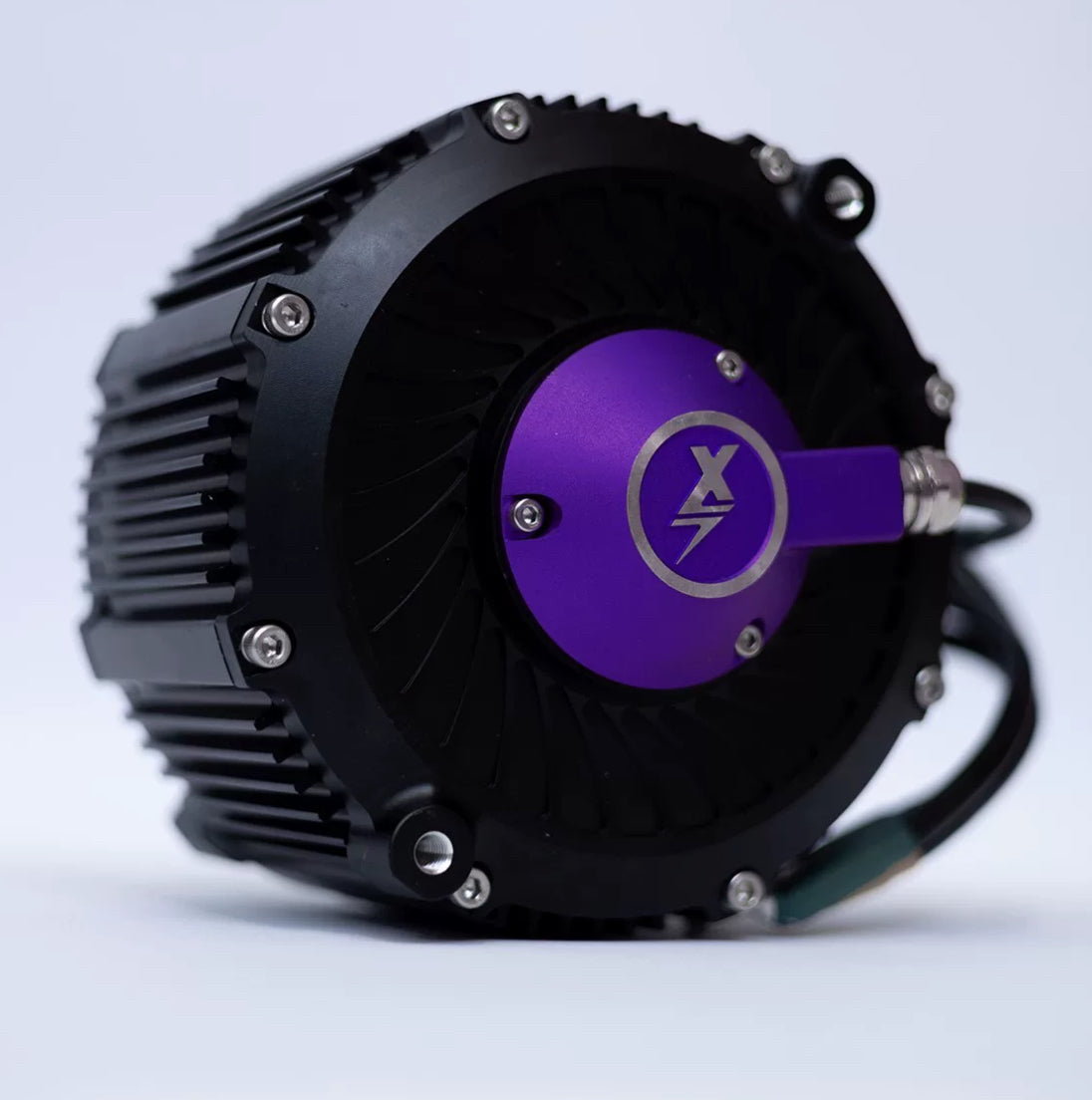

EBMX XUB-80 Sur Ron Ultra Bee Motor

The EBMX XUB-80 is a high-performance motor upgrade designed specifically for the Sur Ron Ultra Bee electric dirt bike. Engineered for experienced riders seeking enhanced power and torque, this motor offers significant improvements over the stock setup.

🔧 Key Specifications

• Stator Thickness: 80mm

• Peak Power: 40 kW

• Voltage Range: 48V – 104V

• Maximum Torque: 65 Nm

• Maximum Rotor RPM: 12,000 RPM

• Efficiency: Up to 94%

• Motor Configuration: 10 poles, 12 slots

• Winding Type: Dual Y parallel connection

• Sensing Method: NJDC 605 encoder

• KV Rating: 85–90 KV

• Cooling Options:

  • Air-Cooled:

    • 15.5 kW continuous (28 minutes)

    • 28 kW continuous (2 minutes 20 seconds)

  • Water-Cooled:

    • 18 kW continuous (28 minutes)

• Phase Current:

  • Maximum: 1100A

  • Continuous: 500A

• Thermal Management:

  • Windings rated at 180°C

  • Power limiting starts at 140°C

  • Power cut at 160°C

• Protection:

  • Waterproof rating: IP67

  • Corrosion-resistant construction
