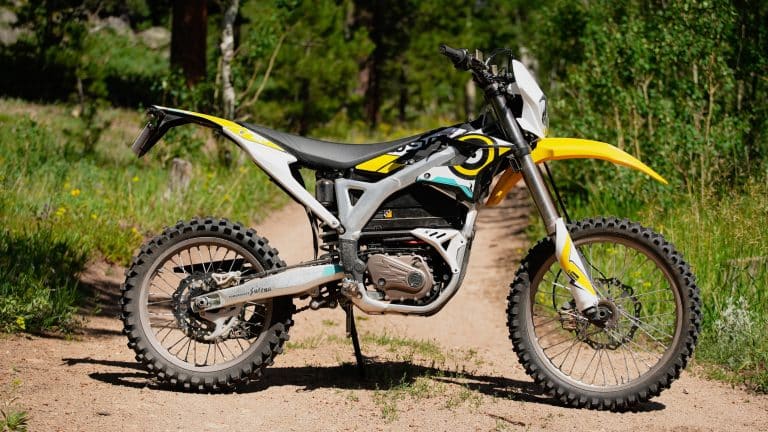

Surron Storm bee

Motor                                OEM Brushless DC

Cooling                               Air

Max Power                         21.5 kW 96V

Max Torque                        30 hp / 520 Nm / 382 ft-lbs. More than a 1,000 cc GP bike

                                          Advisory Note: Get used to it, before you ‘Max Out’

                                          Don’t meet the ground on your back. Yes, that is the power!

Motor Placement                Mid Drive

Controller                           150V Sine Wave Controller

Power Pack                         96V 48Ah

Battery                               High-Rate Ternary Lithium. Optional Upgrade Available

Battery Weight                   29 kgs

Cells                                   Sony VT6 cells

Battery Capacity                 48 Ah

Battery Removal/Swap        Easy slide-out / 7 screw, simple fixing

Battery Weight                   29 kgs

Charging                             Integrated charger for park and charge

Charge Time                       3 hrs, with fast charger

Range                                 @ 50 kph / 31 mph: 148 kms / 93 miles

Ride Modes                        Economy & Sport

Braking / ABS                      Hydraulic discs, 270 mm front, 240 mm rear

                                          Regenerative – Further improves the range

                                          Upgrade available: Shimano H03C’s

Throttle                              RbW, Variable Twist

Gearing                              One

Top Speed                          109 kph / 68 mph

Weight                               117.9 kgs / 260 lbs, inc battery

Frame                                 Forged Aluminum Alloy – extremely flexible, strong, ultra-light, weldable.

Seat Height                         914.4 mm / 36 inch

Suspension                         DVO Upside-down Forks, adjustable mono air absorbers, Matching rear air shock

Travel                                 289.56 mm / 11.4 inch

Wheels                               Aluminum: 19-inch front, 17-inch rear

Tires                                  Super knobby. Uneven size, bigger at front to dampen roll-over & aid control

Load                                   120 kgs

Display Vitals                      LCD / Motor Temperature, Ride Modes, Speedometer, Battery Level, Odometer

Usage                                 All Off-Road Terrains

Security                              Key Operated Ignition
